frameset only
from £2,500
700 x 47c or 650b x 2.1” - Columbus Futura Cross+
Cover big distances at speed with our take on the ultimate gravel adventure bike. From your front door, into the hills and back again, the TRIPI will eat up the miles on any road or trail. Confident on sketchy terrain and rugged descents, it takes as much inspiration from mountain bikes as road bikes meaning it's not scared of a bit of singletrack if that’s your thing.
Gravel racer, day tripper, weekend shredder or your daily commuter - this versatile frame features a carefully selected Columbus steel tube set for all day comfort, multiple load carrying configurations, clearance for big tyres and confidence inspiring geometry.
Scroll down for Tripi features or jump to the technical details including geometry and sizing.
No mo’ toe clip
Toe clip is a pain but it isn’t a thing on the TRIPI, even on our smallest sizes. Run up to a 700c x 47 and focus on the trail ahead.
No mo’ toe clip
Toe clip is a pain but it isn’t a thing on the TRIPI, even on our smallest sizes. Run up to a 700c x 47 and focus on the trail ahead.

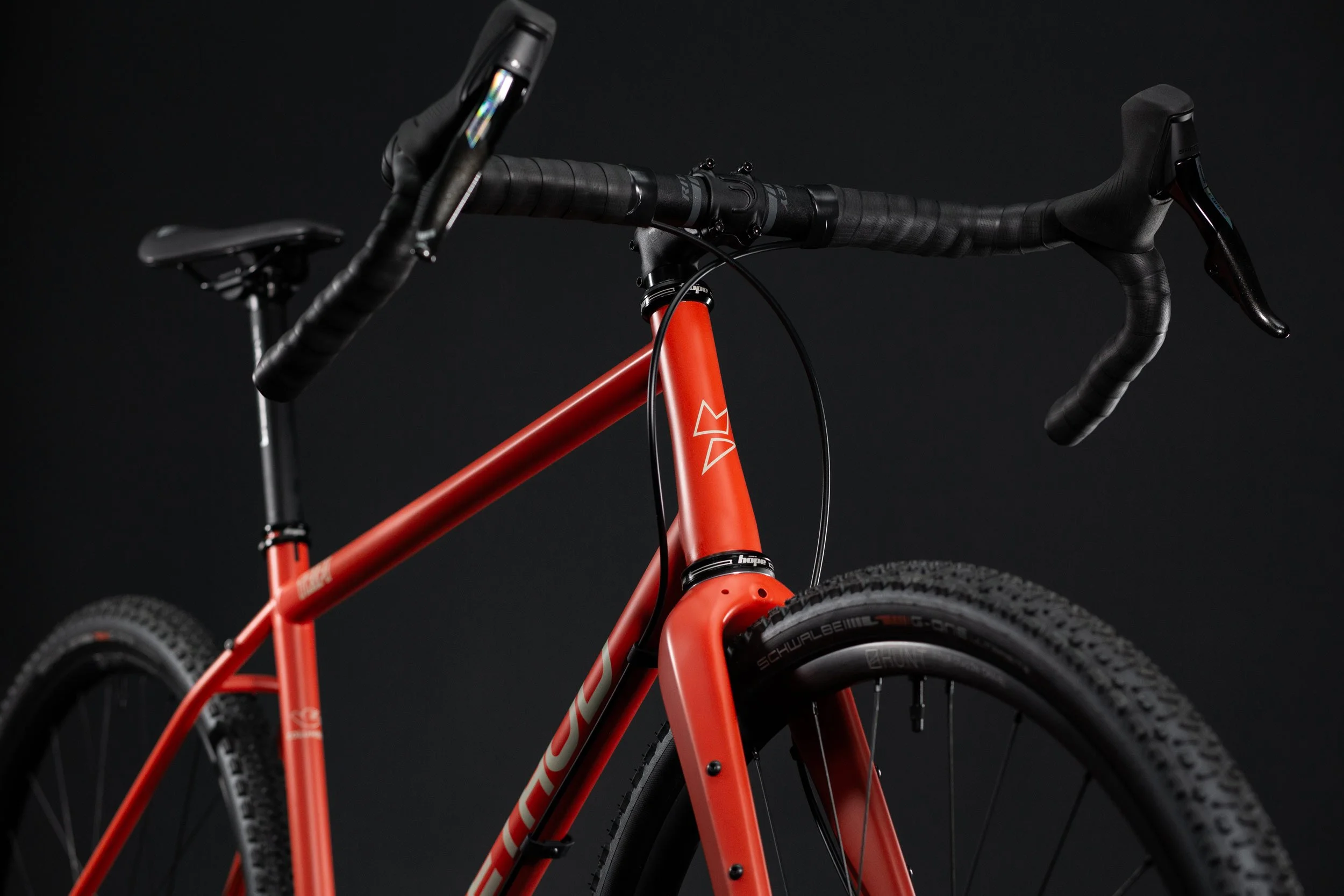

For ups and downs
All sizes are ready for a 125mm dropper post and have a sloping top tube for a bit more standover height when you need it.
Progressive geometry thrives on steep climbs and inspires confidence on descents.
For ups and downs
All sizes are ready for a 125mm dropper post and have a sloping top tube for a bit more standover height when you need it.
Progressive geometry thrives on steep climbs and inspires confidence on decents.

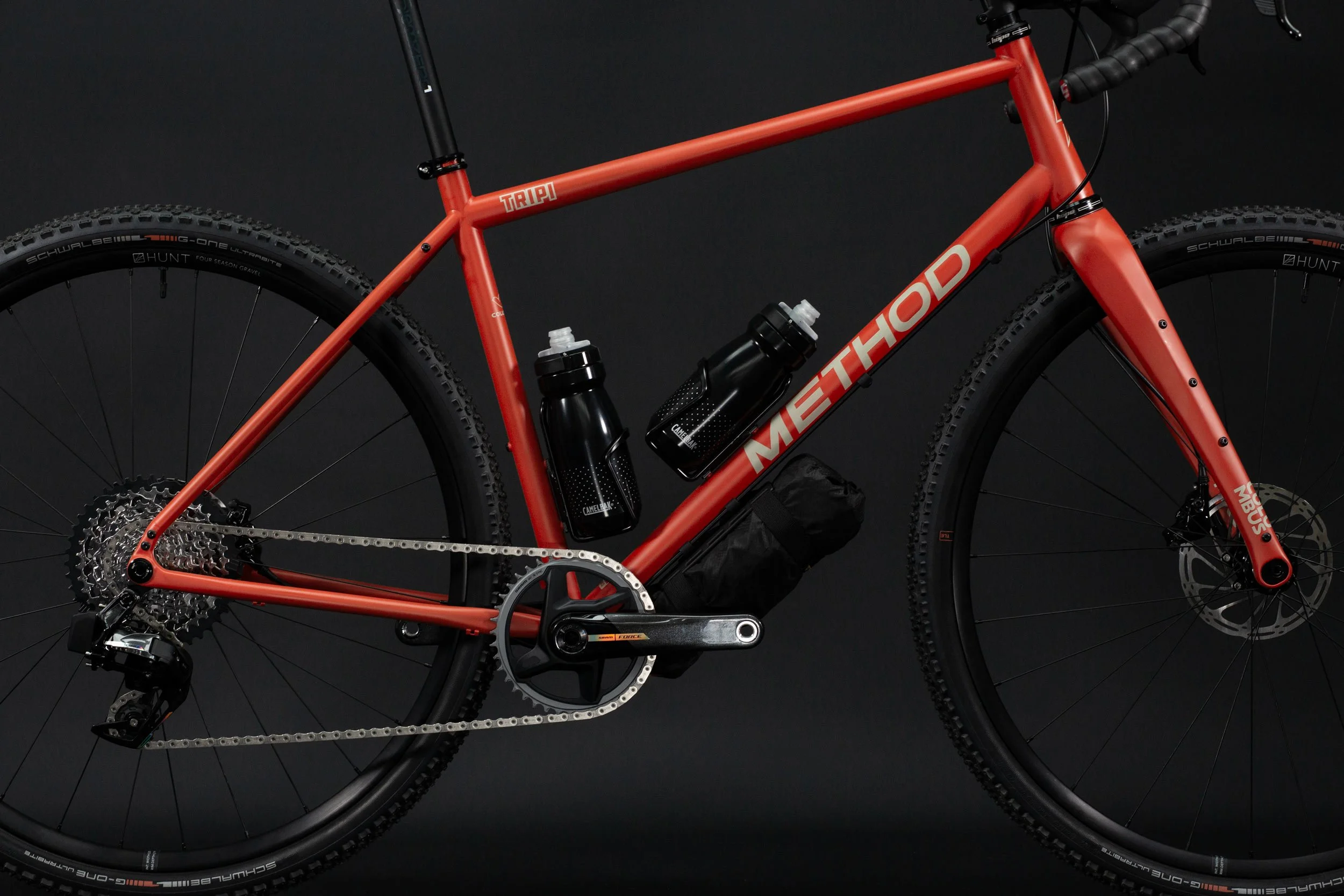

load up
With rear rack mounts, room for two bottles in the front triangle, more bosses under the down tube and on the fork - the TRIPI is ready for adventure.
There’s also the option for additional bosses on the top tube which can be added at checkout.
load up
With rear rack mounts, room for two bottles in the front triangle, more bosses under the down tube and on the fork - the TRIPI is ready for adventure.
There’s also the option for additional bosses on the top tube which can be added at checkout.
practically perfect
We aim to eliminate complexity and build long lasting, hassle free frames.
The TRIPI has full external cable routing, functional but clean hardware and mounting points for racks and mudguards.
Our focus is less on gimmicks and more on building frames that work when you need them to.
practically perfect
We aim to eliminate complexity and build long lasting, hassle free frames.
The TRIPI has full external cable routing, functional but clean hardware and mounting points for racks and mudguards.
Our focus is less on gimmicks and more building frames that work when you need them to.
Top notch materials
We use a mix of custom shaped Columbus tubing and aerospace grade 4130 on the Tripi.
Columbus has been an industry leader in manufacturing bicycle tubing for over 100 years and today their factory in Milan produces the best quality tubing we have come across.
Top notch materials
We use a mix of custom shaped Columbus tubing and aerospace grade 4130 on the Tripi.
Columbus has been an industry leader in manufacturing bicycle tubing for over 100 years and today their factory in Milan produces the the best quality tubing we have come across.

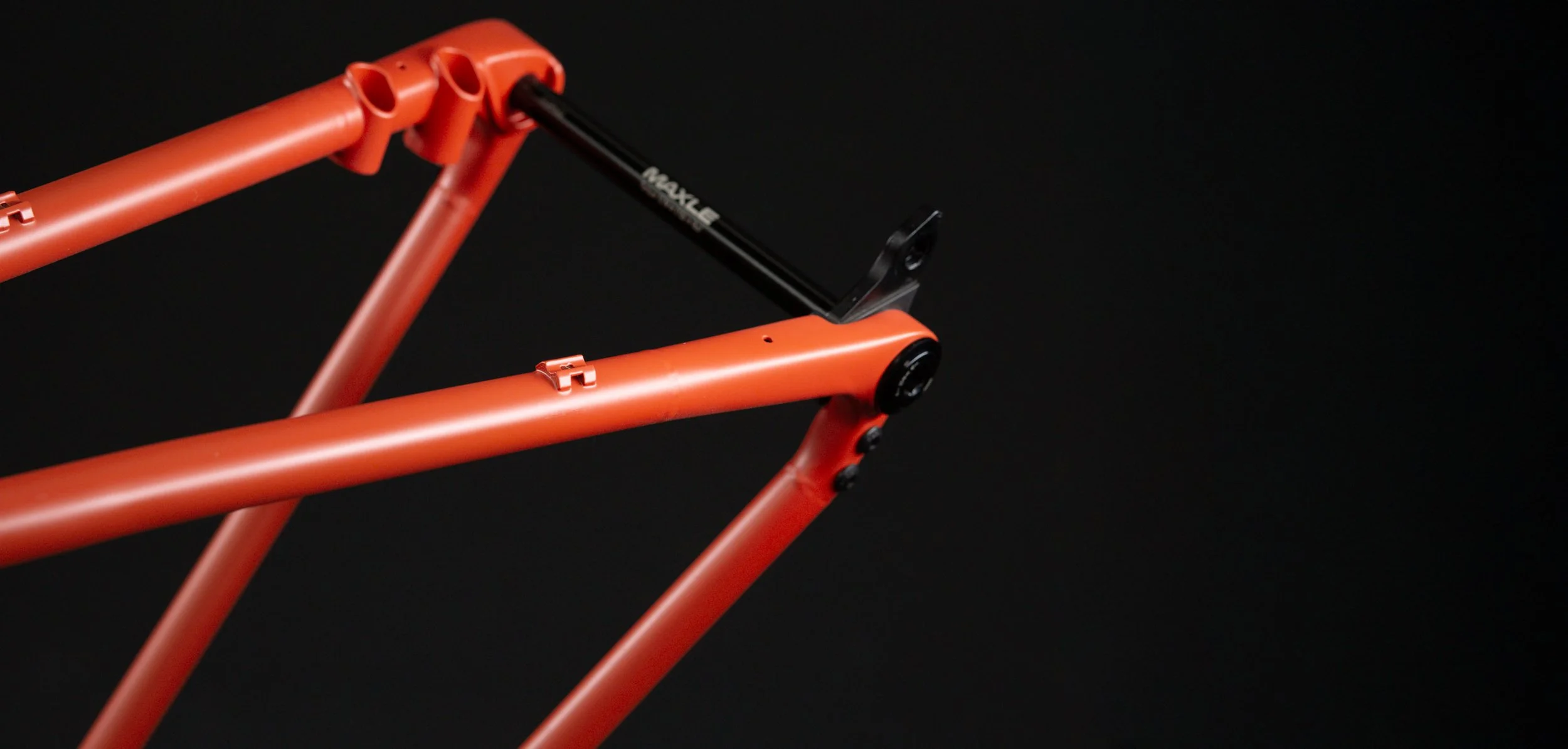

maximum
compatibility
All our frames come with a UDH hanger that is easily replaced at your local bike shop if it takes a knock. Our 3D printed dropouts are also fully compatible with T-Type derailleurs.
If you’d like us to remove the derailleur guides from the chain stay for a clean wireless or single speed look or add Di2 routing you can cus at checkout.
maximum
compatibility
All our frames come with a UDH hanger that is easily replaced at your local bike shop if it takes a knock. Our 3D printed dropouts are also fully compatible with T-Type derailleurs.
If you’d like us to remove the derailleur guides from the chain stay for a clean wireless or single speed look or add Di2 routing you can select at checkout.
fINELY BALANCED
The TRIPI frame geometry has been carefully scaled based on anthropometric data.
Chain stay length also grows with frame size. This may not be the easiest way to build bikes but it means every rider gets the same ride characteristics, no matter their height.
fINELY BALANCED
The TRIPI frame geometry has been carefully scaled based on anthropometric data.
Chain stay length also grows with frame size. This may not be the easiest way to build bikes but it means every rider gets the same ride characteristics, no matter their height.

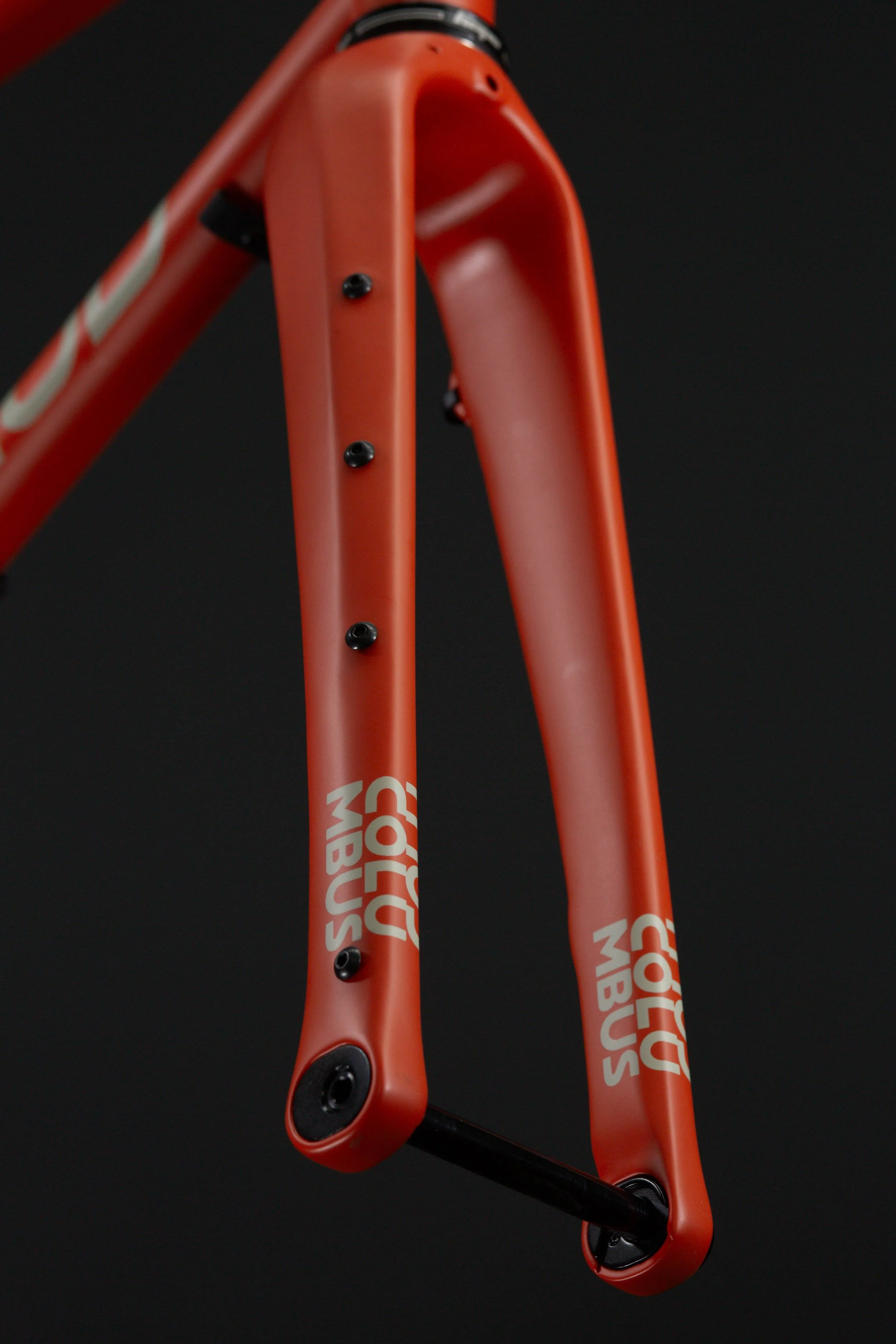

fork flippa
The tried and tested Columbus Futura Cross + carbon fork features a multi-rake system. A simple flip chip at the axle that lets you dial in your ride by swapping between 47 and 52mm offsets.
fork flippa
The tried and tested Columbus Futura Cross + carbon fork features a multi-rake system. A simple flip chip at the axle that lets you dial in your ride by swapping between 47 and 52mm offsets.

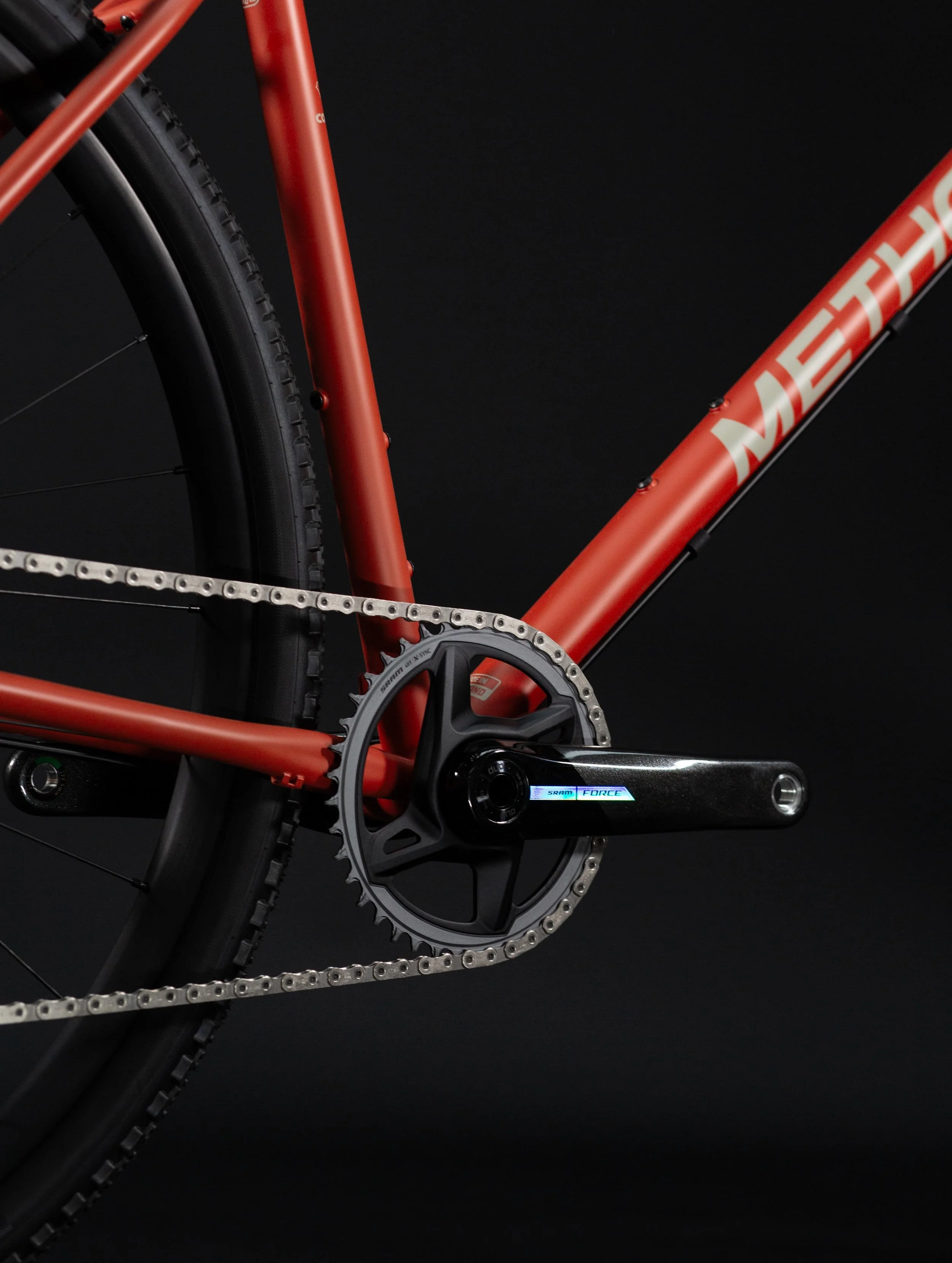

all the gears
Run 1x or 2x on wide or road chain lines.
Trails or road, wide range or close ratio, single on the front or compact double - it’s your choice.
all the gears
Run 1x or 2x on wide or road chain lines.
Trails or road, wide range or close ratio, single on the front or compact double - it’s your choice.
Optional Di2 routing available.

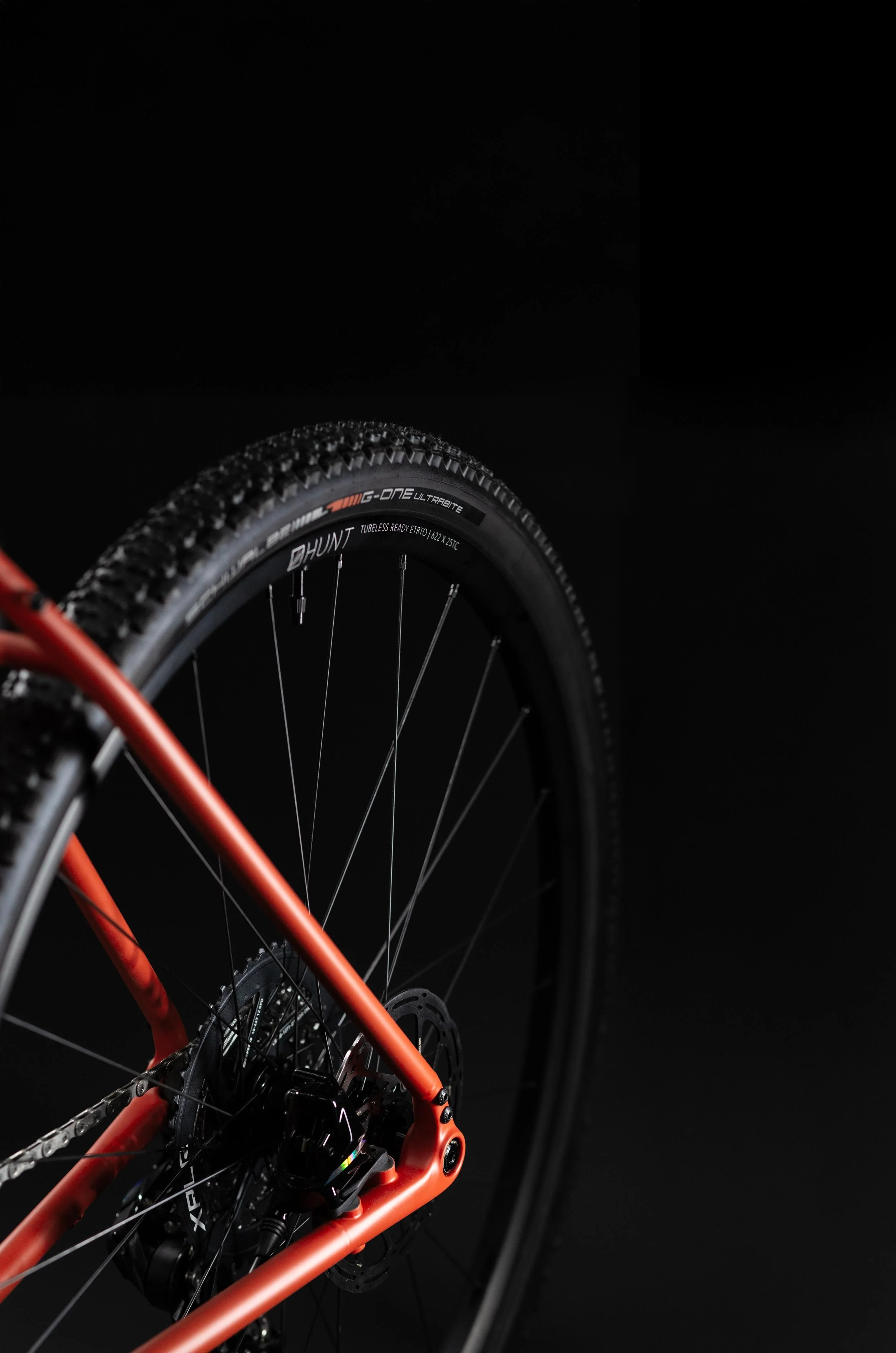

Tyre options
Ready for rough stuff with clearance for up to700 x 47c or 27.5” x 2.1” or throw on some 32s, spin up and get the miles in on the road.
Max 700 x 40c with mudguards.
Tyre options
Ready for rough stuff with clearance for up to700 x 47c or 27.5” x 2.1” or throw on some 32s and spin up and get the miles in on the road.
Max 700 x 40c with mudguards.
(Select geometry in table to highlight)
TRIPI GEOMETRY
| GEO | S | M |
M/L | L | XL |
|---|---|---|---|---|---|
| A - Head Angle |
69º | 69º | 69º | 69º | 69º |
| B - Head Tube |
130 | 150 | 170 | 190 | 210 |
| C - Seat Angle |
75º | 75º | 75º | 75º | 75º |
| D - Seat Tube |
440 | 465 | 490 | 515 | 540 |
| E - Effective TT |
563 | 579 | 595 | 611 | 627 |
| F - BB drop |
70 | 70 | 70 | 70 | 70 |
| G - Chainstay |
425 | 430 | 435 | 440 | 445 |
| H - Wheelbase |
1075 | 1098 | 1121 | 1144 | 1168 |
| I - Front Centre |
655 | 674 | 692 | 710 | 728 |
| J - Reach |
416 | 427 | 438 | 449 | 460 |
| K - Stack |
549 | 567 | 586 | 605 | 623 |
| L - Stand Over |
703 | 727 | 751 | 775 | 796 |
| M - Max dropper insert |
258 | 282 | 306 | 330 | 354 |
| N - Axel to crown |
392 | 392 | 392 | 392 | 392 |
| O - Fork offset |
52 | 52 | 52 | 52 | 52 |
| P - Trail |
83 | 83 | 83 | 83 | 83 |
Where to start?
A good place to start to find the perfect fit for our frames is our size guide below. We’ve split our models across 5 sizes which means a Medium in one brand may not be a Medium in ours. We’d recommend considering the notes below the chart too when picking your fit.
Compare your current bike
If you have a frame that you feel comfortable on you can measure the effective top tube length and compare it to our geometry chart. Although not an exact science, it will let you judge how the cockpits might compare. Account for stem length if that will change between bikes.
Personal Preference
A larger frame is more stable and more predictable at speed, however, the longer wheelbase will mean it will require more movement from the rider to shift the weight balance of the bike and you’ll have work a bit harder to throw it around.
A smaller frame will turn quicker, moving the bike around will be easier and the bike will be more responsive to inputs from the rider or trail.
Think about how and where you ride - blasting down fire roads vs spinning up on twisty backroads.
your body dimensions
We are all built differently. If you have a long torso and shorter legs compared to others the same height and you are between sizes you may want to size up. If you are all legs this could push you onto a smaller frame.
tRIPI Technical Specification
| Stem length |
70mm (50mm-90mm) |
| Fork Steerer |
Tapered 1 1/8" - 1 1/2" |
| Headset |
EC34 TOP / EC44 BOTTOM |
| Seatpost Diameter |
27.2Mmm |
| Seatclamp Diameter |
30.0mm |
| Rear Wheel Diameter |
700c |
| Front Wheel Diameter |
700c |
| Maximum Tyre Size |
700x47c / 650Bx2.1" (max 700x45c with mudguards) |
| Bottom Bracket Shell |
68mm Threaded BSA |
| Chainline |
Standard road or wide road |
| Front Derailleur |
Band on clamp - 28.6mm |
| Maximum Chainring Size |
46T Single – 50/34T Double |
| Rear Wheel Spacing |
142 M12 X P1 UDH |
| Maximum Rear Rotor Size |
160mm |
| Fork Axle Spec |
100mm - M12 X P1.5 E THRU |
| Axle to crown |
392mm |
| Fork offset |
47/52mm (Columbus Flip-Chip) |
| Front brake mount |
Flat mount 140/160 |
| Rear brake mount |
Flat mount 140/160 |
| Cable routing |
Full external |
| Tubeset material |
Columbus / 4130 blend |
| Frame weight size M/L (ex / inc hardware) |
2040g / 2184g |
| Frameset weight as supplied inc headset/hardware |
2930g |
